The fuel shut off solenoid is a small but vital part of many diesel and gas-powered engines. It controls fuel flow to the engine and plays a key role in starting and stopping the engine. However, when this component fails—especially in remote job sites or during emergency situations—some users look for a quick workaround: bypassing the fuel shut off solenoid.
This guide explores:
- What a fuel shut off solenoid does
- Why you might bypass it
- How to bypass it (step-by-step)
- Dangers and legal considerations
- Alternative permanent fixes
🧩 What Is a Fuel Shut Off Solenoid?
A fuel shut off solenoid is an electro mechanical valve found on diesel engines and some gasoline engines. It either allows or blocks fuel flow based on whether electrical power is applied.
When energized (key ON): Solenoid opens to allow fuel to the injection system.
When de-energized (key OFF): Solenoid closes, cutting off fuel and stopping the engine.
🔄 Types of Solenoids
| Type | Action |
|---|---|
| Pull-type | Pulls plunger to allow fuel flow |
| Push-type | Pushes plunger to block fuel flow |
| Three-wire solenoid | Has both “pull” and “hold” coils |
⚠️ Why Would You Bypass It?
Bypassing is typically done as a temporary solution to keep a machine running when the solenoid fails or the electrical signal is interrupted. Here are common scenarios:
✅ When Bypassing May Be Considered:
- The solenoid coil has burned out.
- There’s a wiring issue (broken wire, corroded terminal).
- You’re stuck in the field and need to finish the job.
- Troubleshooting whether the solenoid is the actual cause of no-start.
⚠️ Important: Bypassing should be for testing or emergencies only. Operating without a functioning shutoff solenoid can be dangerous and illegal in some jurisdictions.
🔧 How to Bypass a Fuel Shut Off Solenoid (Step-by-Step)
✅ Disclaimer: Bypassing may expose fuel lines, moving parts, and electrical terminals. Always wear PPE and follow equipment safety protocols.
🔍 Tools Needed
- Socket wrench set
- Screwdrivers
- Wire cutter/stripper
- Jumper wire or 12V test lead
- Multimeter (optional)
🚧 Method 1: Manual Plunger Removal (Basic Bypass)
Step 1: Locate the solenoid
It is usually found near the injection pump or carburetor. Follow the fuel line or wiring harness from the key switch.
Step 2: Disconnect the solenoid
Unplug the connector or remove the solenoid using a wrench or socket.
Step 3: Remove or trim the plunger
Once out, you’ll see a spring-loaded plunger. You can:
- Remove it entirely, or
- Cut off the plunger end (not recommended unless it’s a last resort)
Step 4: Reinstall the solenoid body (optional)
Screw the body back in place (without the plunger), to seal the fuel circuit and avoid leaks.
Step 5: Test the engine
Start the engine. It should now run even without power to the solenoid.
Note: The engine will now keep running until fuel is manually shut off or the air intake is blocked.

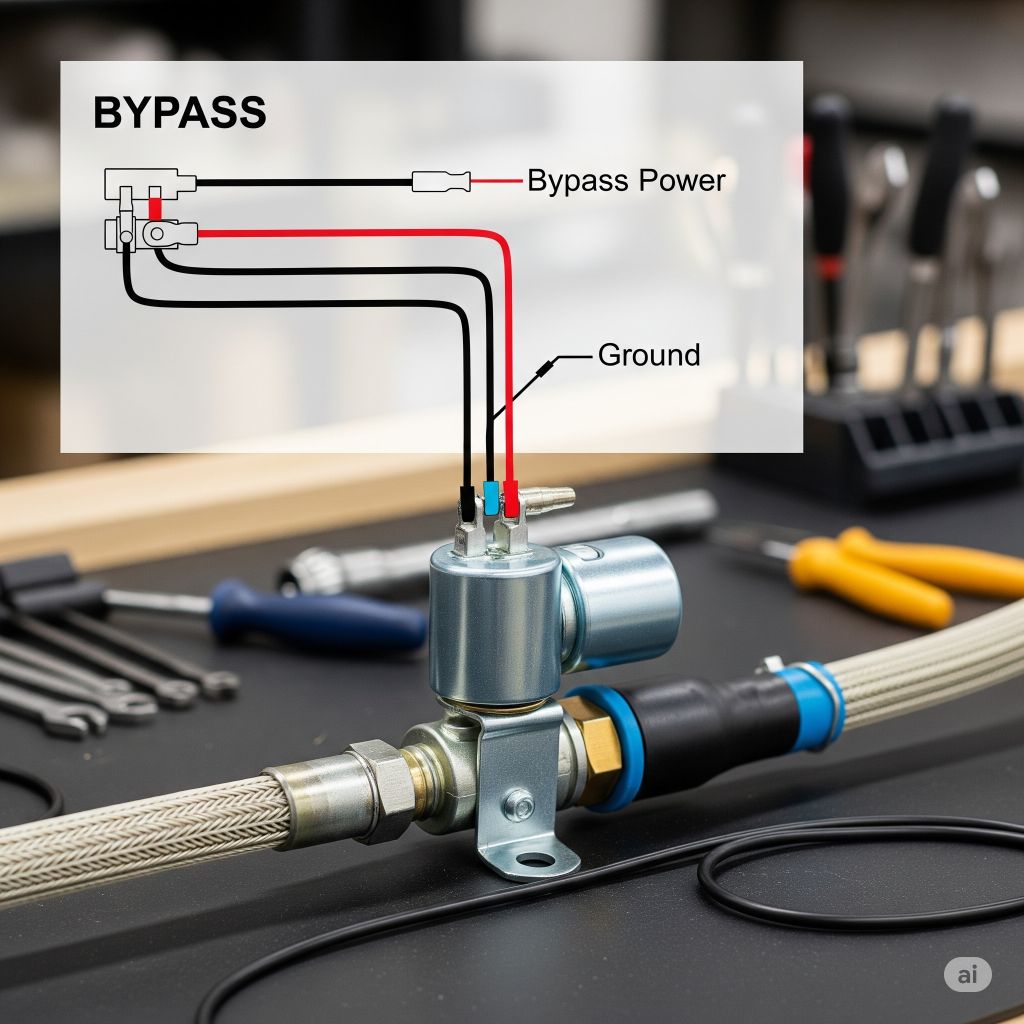

⚙️ Method 2: Bypass Using Jumper Wire (If Coil is Good)
If the solenoid itself is good but not receiving power, bypass the wiring with a jumper:
Step 1: Connect one end of the jumper wire to the battery positive terminal.
Step 2: Connect the other end to the + pin on the solenoid (usually a spade connector).
Step 3: Start the engine. If it runs, the problem is in the original wiring or key switch.
⚡ Warning: Never leave the jumper wire attached after shutdown. It may drain the battery or cause damage.
🔒 Risks of Bypassing the Fuel Shut Off Solenoid
⚠️ 1. Engine Runaway
Without the solenoid, you lose the ability to safely shut off fuel. If the engine overruns or experiences a throttle fault, you won’t be able to stop it quickly.
⚠️ 2. Fuel Leaks or Spills
Improper reassembly after removing the plunger or solenoid body can lead to fuel leakage—posing both a fire hazard and environmental risk.
⚠️ 3. Overheating or Overloading
Bypassing may allow an engine to run without proper controls, which can cause unregulated fuel flow, overloading, or engine damage.
⚠️ 4. Legal/Insurance Implications
In regulated environments, such as construction sites or public roads, bypassing safety devices like shut-off solenoids could:
- Void your equipment warranty
- Violate workplace safety regulations
- Affect insurance coverage in case of accident
🔄 Safer Alternative Fixes
If your solenoid fails, here are repair-first options before considering a bypass:
✅ 1. Replace the Solenoid
They are relatively inexpensive ($20–$80 for most models) and widely available for brands like:
- Kubota
- John Deere
- Caterpillar
- Takeuchi
- Yanmar
✅ 2. Test for Voltage at the Connector
Use a multimeter to check if 12V is reaching the solenoid when the key is turned. If not, troubleshoot the fuse, ignition switch, or wiring.
✅ 3. Install a Manual Shut Off Valve
As a permanent workaround, some diesel engine owners install a mechanical fuel shutoff valve on the fuel line near the injection pump.
📌 Use Cases and Examples
🚜 Kubota SVL75-2
Owners have reported stalling issues due to solenoid wiring wear. Temporary bypass allowed restarting the machine until the harness was replaced.
🏗️ John Deere 333D
Fuel shutoff solenoid failure caused no-start. Bypassing allowed troubleshooting the rest of the fuel system. Final fix: replacing the 3-wire solenoid.
🛠️ Generator Applications
Diesel generator users commonly bypass solenoids in off-grid or survivalist scenarios but often add a manual fuel cut-off switch for safety.
📋 Signs Your Fuel Shut Off Solenoid Is Bad
- Engine cranks but doesn’t start
- Engine stalls after a few seconds
- Clicking noise near the fuel pump (solenoid attempting to open)
- No voltage at solenoid with key on
💡 Expert Tips
- Mark solenoid terminals before disconnecting wires
- Keep a spare solenoid in your field kit
- Add a relay or fuse if rewiring directly to battery power
- Log bypasses and repairs for equipment records
FAQs – Bypassing Fuel Shut Off Solenoid
Q1: What happens if I remove the fuel shut off solenoid plunger?
A: Removing the plunger allows constant fuel flow, which means the engine can run without electronic control. However, you’ll need to shut it off manually, which may involve stalling the engine or blocking air intake.
Q2: Is it safe to bypass a fuel shut off solenoid permanently?
A: No. Bypassing should only be temporary. Permanent bypasses can lead to engine runaway, fuel leaks, and loss of emergency shutdown functionality.
Q3: How can I tell if my fuel shut off solenoid is bad?
A: Symptoms include:
- Engine cranks but won’t start
- Engine shuts off after a few seconds
- No clicking noise from solenoid when key is turned
- No voltage at solenoid terminals
Q4: Can I run my diesel engine without a shut off solenoid?
A: Yes, but you must manually cut off fuel or air to stop the engine. This is not ideal for safety or daily use.
Q5: What tools do I need to bypass a solenoid?
A: Basic tools like a socket set, jumper wires, multimeter, and pliers are usually enough. Some situations may require wire strippers or heat-shrink tubing if doing a temporary wiring fix.
Q6: Will bypassing the solenoid damage my engine?
A: Not directly, but running the engine without controlled fuel cutoff can result in uncontrolled shutdowns, overheating, or excessive wear—especially if it runs at high RPMs unchecked.
Q7: Can I bypass the solenoid using a jumper wire from the battery?
A: Yes, if the solenoid itself is good but the wiring is faulty. Use a fused jumper wire to avoid electrical damage.
Q8: Why does my solenoid click but the engine still won’t start?
A: Clicking indicates the solenoid is trying to activate, but it may not be opening fully. Internal failure or a weak “hold” coil could be the cause.
Q9: Is bypassing legal?
A: On private land or for testing, it may be acceptable. However, operating a machine without a working shutoff mechanism on public roads or job sites may violate safety regulations and void warranties or insurance.
Q10: Can I install a manual fuel shut-off valve instead?
A: Yes. Some off-grid or older engines use manual valves as a reliable, low-tech alternative—though they lack automatic shutdown capability.
Q11: What’s the cost of replacing a fuel shut off solenoid?
A: Replacement costs typically range from $25 to $100 depending on the brand and whether it’s a 2-wire or 3-wire solenoid.
Q12: How do I shut off an engine that’s been bypassed?
A: You can:
- Block the air intake (e.g., with a rag—risky)
- Use a kill switch to cut ignition (if available)
- Shut off a manual fuel valve (if installed)
✅ Final Thoughts
Bypassing a fuel shut off solenoid is a practical short-term solution when you’re stuck in the field, but it should never be a long-term fix. Safety devices exist for a reason. Always aim to replace or repair the solenoid as soon as possible and follow safe shutdown procedures in the meantime.
