7 Common Lawn Mower Solenoid Problems and Fixes [Model-wise]

The sun is shining, the grass is growing at a record pace, and you have finally carved out an hour to maintain your property. You climb into the seat, turn the key, and… nothing. Or perhaps you hear a rhythmic, metallic clicking that sounds more like a telegraph than a combustion engine.

Before you assume your starter motor has breathed its last breath or your engine has seized, you must look at the “gatekeeper” of your mower’s electrical system: the starter solenoid. This small, cylindrical component is the mechanical bridge that carries a massive surge of electricity from the battery to the starter motor. When it fails, your weekend plans come to a screeching halt.

This guide provides a comprehensive, deep dive into diagnosing, troubleshooting, and fixing lawn mower solenoid problems, including a technical breakdown of common models and the precise “active” steps needed to restore your machine’s hardware.

Anatomy of the Mechanical Bridge: How a Solenoid Works

To fix a solenoid, you first need to understand the physics of its operation. A lawn mower battery stores a high-amperage current that would easily melt a standard ignition switch. Therefore, engineers use a solenoid as a heavy-duty relay.

When you turn the ignition key to the “Start” position, you send a small, low-current signal to the solenoid. This current flows through an internal coil of wire, creating an electromagnet. This magnet pulls a metal plunger forward, which physically connects two large copper terminals. One terminal is wired directly to the positive battery post; the other is wired to the starter motor.

Once that plunger makes contact, the “high-current gate” opens. Electricity rushes through the solenoid, hits the starter motor, and cranks the engine. Consequently, any failure in this chain—whether mechanical, electrical, or magnetic—prevents the engine from turning.

5 Common Lawn Mower Solenoid Problems

Identifying the specific failure mode of your solenoid allows you to bypass hours of unnecessary guesswork. Here are the primary issues that plague modern mowing equipment.

A. Clicking Noise with No Start

This is the most frequent symptom of a failing electrical system.

• The Single Loud Click: You hear one solid “thunk,” but the engine doesn’t move. This usually means the solenoid is receiving power and the internal plunger is moving, but the internal copper contacts are too scorched or corroded to pass electricity to the starter.
• Rapid, Continuous Clicking: This sounds like a machine gun. It indicates that the solenoid has enough power to engage the magnet, but as soon as the plunger moves, the battery voltage drops so low that the magnet fails. The plunger snaps back, the voltage rises, and the cycle repeats. Usually, this points to a low battery or a loose connection rather than a dead solenoid.

B. No Sound or Action

If you turn the key and the mower remains absolutely silent, you are likely facing an “open coil” within the solenoid. This means the internal copper wire has snapped or melted, breaking the circuit. Alternatively, the “trigger” wire from your ignition might be disconnected. Without that low-current signal, the electromagnet never activates, and the plunger remains stationary.

C. The Welded or Stuck Solenoid

This is a rare but startling problem. If the starter motor keeps running even after you release the key or turn the mower off, the internal contacts have fused (welded) together. Excessive heat or an internal electrical arc causes the copper to melt slightly and stick. In this scenario, you must quickly disconnect the battery to stop the starter from burning itself out.

D. Corroded or Loose Terminals

Because lawn mowers live in environments full of moisture and grass clippings, corrosion is inevitable. White or green oxidation on the main battery cable connections increases electrical resistance. High resistance prevents the necessary amperage from reaching the solenoid, causing it to fail even if the battery is fully charged.

E. Physical Damage and Overheating

Inspect the exterior of the solenoid. If you notice a melted plastic base or scorched, charred metal posts, the solenoid has experienced a “thermal event.” This is often caused by trying to start the mower for too long without a break, which generates excessive heat that destroys the internal seals and insulation.

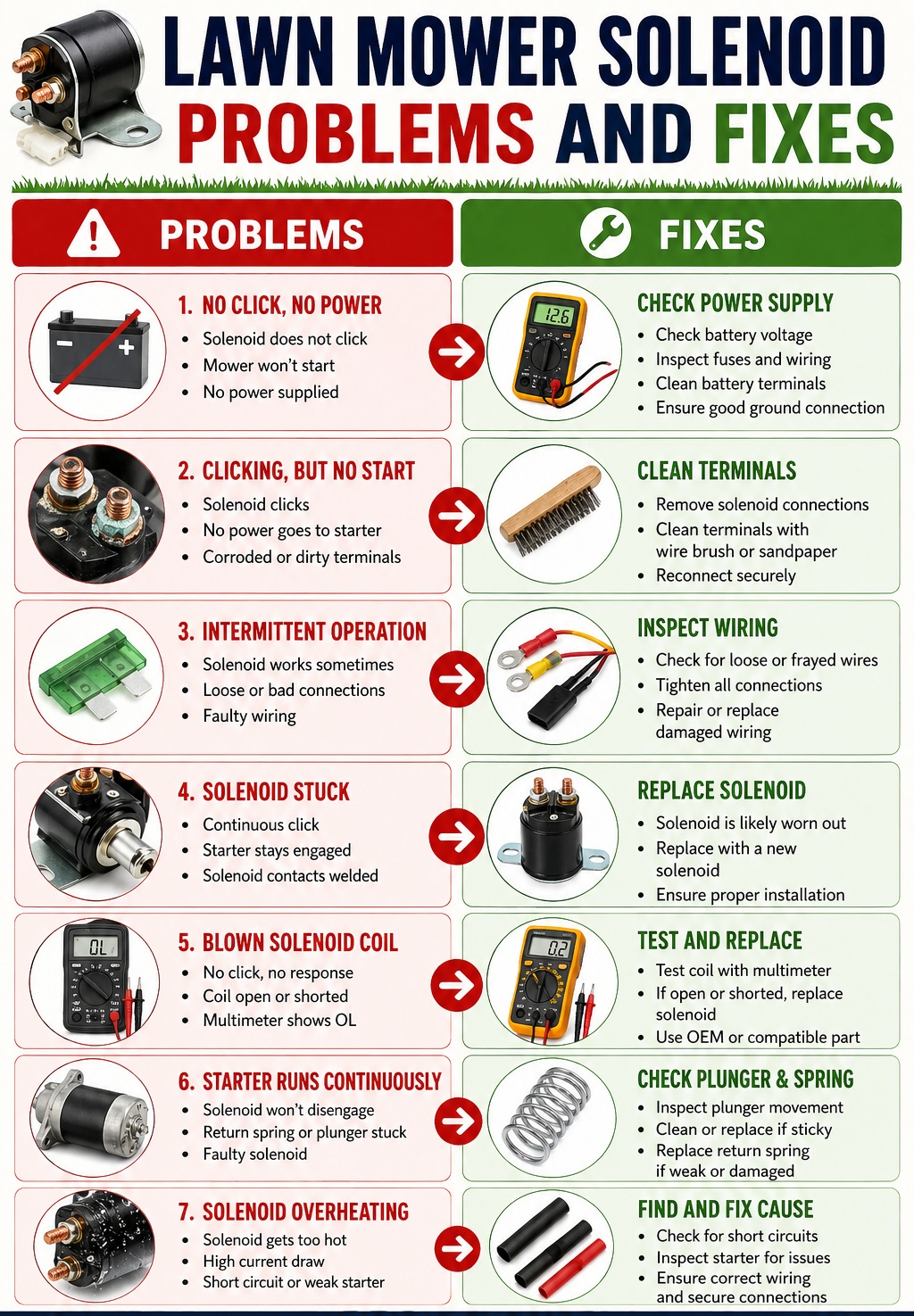

Lawn Mower Solenoid Problems & Fixes (Table Format)

Solenoid Model Data and Cross-Reference Table

Choosing the right replacement solenoid is a mechanical necessity. Most mowers use either a 3-pole or a 4-pole configuration. A 3-pole solenoid grounds itself through its mounting bracket (touching the metal frame), while a 4-pole solenoid uses a dedicated ground wire.

Professional Troubleshooting Steps

Follow this active diagnostic workflow to determine if your solenoid is truly the culprit or if another safety sensor is “masking” as a solenoid problem.

Step 1: Listen for the Click

Turn the ignition key. If you hear a click, the “trigger” circuit is likely healthy. This tells you that the battery, the ignition switch, and the various safety interlocks (the seat switch, the brake switch, and the blade engagement switch) are all allowing power to reach the solenoid. If you hear silence, check the fuse located near the solenoid first.

Step 2: Check the Ground Connection

For 4-pole solenoids, the fourth wire is the ground. If this wire is frayed or disconnected, the internal coil cannot complete its circuit, and the solenoid will remain dead. For 3-pole solenoids, ensure the mounting bolts are tight and bolted to clean, unpainted metal. Rust on the frame acts as an insulator, breaking the ground connection.

Step 3: Perform the Voltage Test (Multimeter)

Grab your multimeter and set it to DC Voltage.

1. Check Input: Place the red probe on the terminal connected to the battery. You should see 12.6V.
2. Check Output: Place the red probe on the terminal connected to the starter. Have a helper turn the key.
3. The Verdict: If you see 12V entering the solenoid but 0V exiting while the key is turned, the solenoid is mechanically broken. If you see less than 9V on the output, your battery is likely too weak to hold a load.

Step 4: Bridge or “Jump” the Solenoid

This is the classic “field test.” Using a screwdriver with a heavy rubber-insulated handle, bridge the two main large metal posts on the solenoid.

• If the engine cranks: The battery and starter motor are functional, proving that the solenoid is faulty.
• If it only sparks but doesn’t crank: Your starter motor is likely seized, or your battery cables are too corroded to carry the current.

Safety Warning: Bridging a solenoid creates significant sparks. Ensure there are no fuel leaks nearby, and always keep the mower in neutral with the blades disengaged.

How to Fix or Replace the Solenoid

If your troubleshooting points to a dead solenoid, replacement is a straightforward mechanical task that you can complete in under 20 minutes.

1. Disconnect the Battery

Always remove the negative (black) cable first. This is a critical safety rule; if your wrench touches the metal frame while you are loosening the positive side, you will create a massive short circuit. By removing the negative cable first, you “unplug” the frame from the electrical loop.

2. Label and Remove Wires

Solenoids often have multiple wires that look similar. Use a piece of masking tape to label the “Battery” side and the “Starter” side. Furthermore, take a digital photo with your phone for a quick reference during reassembly.

3. Inspect and Clean Terminals

Before installing the new unit, use a wire brush or sandpaper to clean the circular eyelets on your battery cables. Even a thin layer of oxidation acts as a barrier to electricity. Subsequently, apply a small amount of dielectric grease to the terminals to prevent future corrosion from moisture.

4. Install the New Hardware

Bolt the new solenoid into place. Ensure the mounting bolts are snug. For 3-pole models, this is your electrical ground, so the connection must be metal-on-metal. Reconnect the wires in the reverse order (Positive first, Negative last).

Maintenance: Preventing Thermal Damage and Corrosion

You can significantly extend the life of your mower’s electrical hardware by following a few simple maintenance habits.

• Limit Cranking Time: Never turn the key for more than 5 to 10 seconds at a time. If the engine doesn’t start, wait at least 30 seconds before trying again. This allows the solenoid’s internal copper coil to cool down, preventing it from melting or “welding” the contacts together.
• Battery Tenders: During the winter, use a battery tender to keep the voltage at 12.6V. A weak battery forces the solenoid to “chatter,” which creates internal arcing and destroys the copper contact points.
• Clear Debris: Grass clippings trap moisture. If your solenoid is covered in wet grass, the metal posts will corrode rapidly. Periodically use compressed air to blow out the area around the solenoid and battery.

Frequently Asked Questions (FAQ)

Can I use a 4-pole solenoid to replace a 3-pole solenoid?

Yes, but you must manually ground the fourth pole. Simply run a short wire from the fourth terminal to the metal frame of the mower. Conversely, you cannot easily use a 3-pole to replace a 4-pole if your mower’s wiring harness expects a dedicated ground wire.

Why does my solenoid click even with a new battery?

Check your ground cable. If the heavy black cable running from the battery to the frame is loose or attached to a rusty spot, the solenoid won’t get enough “return” power to stay engaged. Clean the mounting point and tighten the bolt.

Is it possible to “un-stick” a welded solenoid?

Sometimes a sharp tap with the handle of a screwdriver can dislodge a stuck plunger, but this is only a temporary fix. Once the internal contacts have arced and melted, they are prone to sticking again. For safety’s sake, replace the unit immediately.

Does it matter which big post I use for the battery wire?

On most universal solenoids, the two large posts are interchangeable. However, some specific models have an “I” (Ignition) and “S” (Starter) marking. Always check the diagram on the packaging or follow the orientation of your old unit.

Summary

The starter solenoid is a small component with a massive responsibility. By listening for the specific “click” of failure and using a systematic diagnostic approach, you can keep your mower running at peak mechanical efficiency.
