Here’s a detailed breakdown of the Kubota MX5400 tractor’s specifications, providing a comprehensive overview of its capabilities and features.

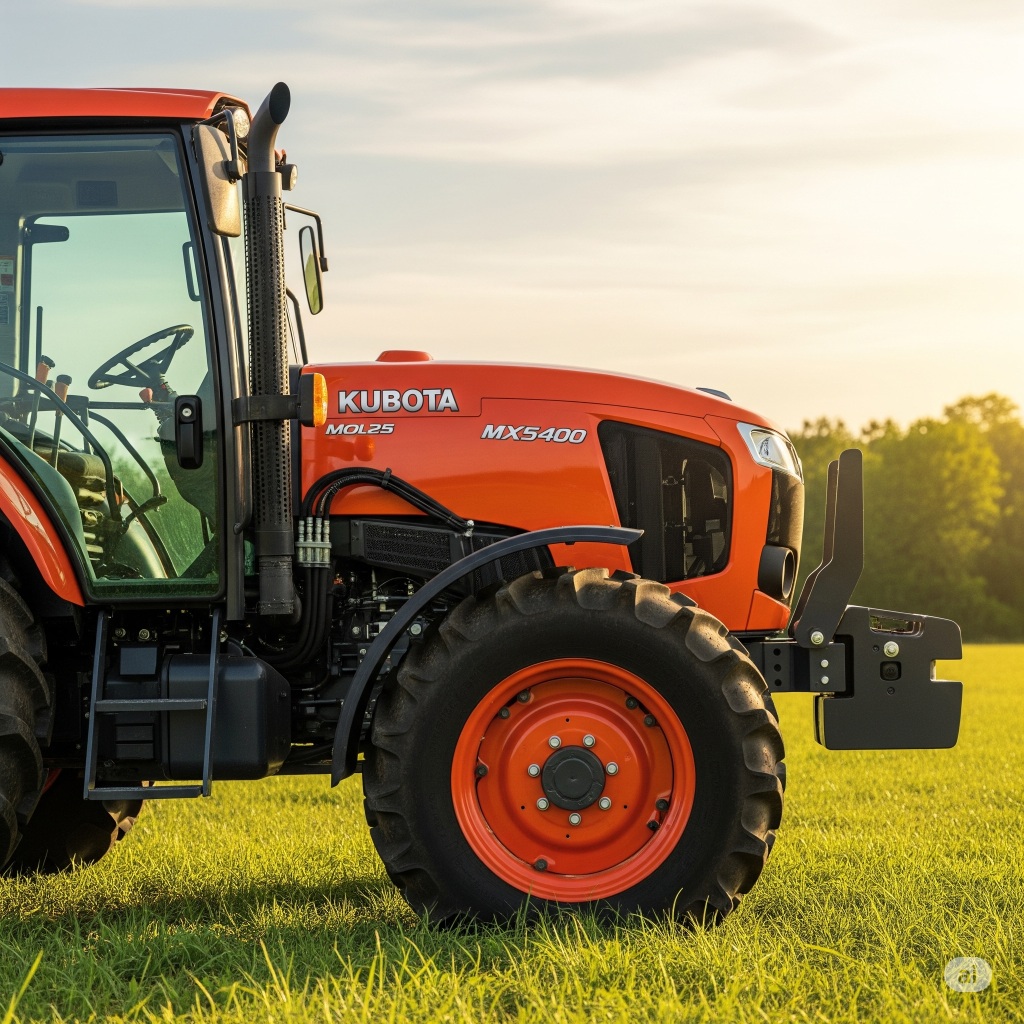

Kubota MX5400: Detailed Specifications

The Kubota MX5400 is a utility tractor designed for a wide range of tasks, from farming and landscaping to construction and property maintenance. Known for its power, versatility, and reliability, it bridges the gap between compact and large agricultural tractors, making it a popular choice for operators seeking robust performance in a mid-sized package.

1. Engine

The MX5400 is powered by a robust Kubota diesel engine, providing dependable performance and fuel efficiency.

  • Engine Model: Kubota V2403-CR-T
  • Engine Type: 4-cylinder, liquid-cooled, direct injection, turbocharged diesel engine
  • Horsepower (Engine Gross): 57.9 HP (43.2 kW)
  • PTO (Power Take-Off) Horsepower: 47.3 HP (35.3 kW)
  • Displacement: 2.434 liters (148.5 cu. in.)
  • Rated RPM: 2,700 RPM
  • Fuel Tank Capacity: 13.5 gallons (51 liters)

2. Transmission

The MX5400 offers two main transmission options to suit various operational preferences and tasks:

  • Gear Shift Transmission (GST):
    • Type: Synchro-Shuttle
    • Speeds: 8 forward, 8 reverse
    • Clutch: Dry type, single stage
  • Hydrostatic Transmission (HST):
    • Type: 3-range HST (H-M-L)
    • Control: Twin operating pedals
    • Speeds: Infinite (forward and reverse)

Both transmissions provide smooth operation, with the HST offering greater ease of use for loader work and frequent direction changes, while the GST provides more direct power for tillage and heavy drawbar work.

3. PTO (Power Take-Off)

The independent PTO system ensures consistent power delivery to implements.

  • Rear PTO Type: Independent
  • Rear PTO Speed: 540 RPM
  • PTO Control: Hydraulic independent

4. Hydraulic System

The powerful hydraulic system provides ample flow for implements and loader operations.

  • Total Hydraulic Flow: 12.3 GPM (46.6 L/min)
    • Steering Pump Flow: 3.7 GPM (14.0 L/min)
    • Main Pump Flow: 8.6 GPM (32.6 L/min)
  • 3-Point Hitch Category: Category I & II
  • 3-Point Hitch Lift Capacity (at 24 inches behind link ends): 2,315 lbs (1,050 kg)
  • Optional Auxiliary Remote Valves: Up to 2 valves can be added for increased versatility.

5. Dimensions & Weight

The MX5400 is designed with a stable and maneuverable frame.

  • Overall Length (with 3P): 128.9 inches (3,275 mm)
  • Overall Width (with standard tires): 70.3 inches (1,785 mm)
  • Overall Height (with ROPS): 96.3 inches (2,445 mm)
  • Wheelbase: 74.6 inches (1,895 mm)
  • Ground Clearance: 15.2 inches (385 mm)
  • Operating Weight (ROPS, 2WD): 4,244 lbs (1,925 kg)
  • Operating Weight (ROPS, 4WD): 4,608 lbs (2,090 kg)

6. Tires & Steering

  • Standard Tire Options:
    • Front (4WD): 9.5-22
    • Rear (4WD): 16.9-28
  • Steering: Hydrostatic power steering for easy and responsive control.

7. Operator’s Station

The MX5400 is available with either a ROPS (Roll-Over Protective Structure) or an optional factory-installed cab.

  • ROPS: Foldable for easy storage or transport in low-clearance areas.
  • Cab Option: Features air conditioning, heating, and enhanced visibility for operator comfort in varying weather conditions.

8. Loader Specifications (LA1065 Loader)

The Kubota MX5400 is frequently paired with the Kubota LA1065 Front Loader.

  • Maximum Lift Height (at pivot pin): 110.2 inches (2,800 mm)
  • Lift Capacity (at pivot pin, max height): 2,369 lbs (1,075 kg)
  • Breakout Force (at pivot pin): 3,395 lbs (1,540 kg)
  • Self-Leveling: Available as an option to keep the bucket parallel to the ground.

9. Key Features & Advantages

  • Versatility: Suitable for a wide range of tasks, from loader work and tilling to hay operations and roadside maintenance.
  • Durability: Built with heavy-duty components for long-term reliability.
  • Operator Comfort: Ergonomic controls, comfortable seating, and an optional climate-controlled cab enhance productivity.
  • Powerful Engine & Hydraulics: Capable of handling demanding implements and providing quick loader cycle times.
  • Easy Maintenance: Designed for straightforward access to service points, simplifying routine maintenance.

The Kubota MX5400 is a well-rounded utility tractor that delivers a strong balance of power, features, and durability, making it a valuable asset for diverse agricultural and property management needs.

Here’s a comprehensive guide detailing common problems and their solutions for the Kubota MX5400 utility tractor, a popular choice for its robust performance and versatility. While generally reliable, like any piece of heavy machinery, the MX5400 can experience specific issues that owners should be aware of.

Kubota MX5400: Common Problems and Solutions

The Kubota MX5400 is a highly regarded utility tractor, appreciated for its powerful engine, durable build, and versatility across various tasks. However, even reliable machines can encounter issues. Understanding these common problems and their solutions can help owners minimize downtime and extend the life of their MX5400.

1. Hydraulic System Issues

Hydraulic problems are common across many tractor models and can significantly impact the MX5400’s performance, especially for loader work and operating 3-point hitch implements.

Common Problems:

  • Slow or Weak Hydraulics: Loader arm lifts slowly, or 3-point hitch struggles to lift heavy implements.
  • Hydraulic Fluid Leaks: Visible fluid drips or puddles around hoses, cylinders, or connections.
  • Excessive Hydraulic Noise: Whining or grinding sounds from the hydraulic pump.

Root Causes:

  • Low or Contaminated Fluid: Insufficient fluid levels or old, contaminated fluid can cause poor performance and wear.
  • Clogged Hydraulic Filter: A dirty filter restricts flow, leading to weak hydraulics.
  • Worn Hydraulic Pump: Over time, the pump can wear out, reducing its efficiency.
  • Damaged Hoses/Seals/Fittings: Age, use, or damage can cause leaks.
  • Relief Valve Malfunction: A sticking or faulty relief valve can prevent proper pressure buildup.

Solutions:

  1. Regular Fluid and Filter Changes:
  • Check hydraulic fluid levels daily and top off as needed using the recommended Kubota UDT2 fluid.
  • Change the hydraulic filter and fluid at the intervals specified in the owner’s manual (typically every 200-300 hours for the filter, and longer for fluid).
  1. Inspect for Leaks:
  • Routinely check all hydraulic hoses, cylinders, and fittings for signs of leaks. Replace any cracked hoses or worn seals promptly.
  1. Bleed the System:
  • If air enters the hydraulic system (e.g., after a component replacement), it can cause sluggishness. Bleed the system according to the manual.
  1. Professional Diagnosis:
  • If problems persist after basic checks, it might indicate a worn pump, faulty relief valve, or internal system issues requiring professional diagnosis and repair.

2. PTO (Power Take-Off) Engagement Problems

The PTO system is crucial for operating implements like mowers, rototillers, and balers. Issues with engagement or disengagement can halt work.

Common Problems:

  • PTO Not Engaging/Disengaging: The PTO shaft doesn’t spin or won’t stop.
  • Grinding Noise During Engagement: Indicates clutch or brake issues.
  • PTO Kicking Out Under Load: The PTO disengages unexpectedly during operation.

Root Causes:

  • Clutch Issues (GST models): Worn clutch disc or pressure plate.
  • PTO Brake Issues (HST models): Problems with the PTO brake, which stops the shaft from spinning when disengaged.
  • Electrical Malfunction (Independent PTO): Faulty PTO switch, relay, or wiring.
  • Low Hydraulic Pressure: Can affect hydraulic PTO engagement.
  • PTO Shaft Wear: Worn splines on the PTO shaft or implement drive shaft.

Solutions:

  1. Check Electrical Connections:
  • For independent PTO, ensure the PTO switch and all related electrical connections are clean, tight, and free of corrosion. Test the switch and relay.
  1. Adjust Clutch/Brake:
  • On GST models, the clutch may need adjustment. For HST models, the PTO brake might need adjustment or replacement. Consult the service manual.
  1. Verify Hydraulic Pressure:
  • Ensure the hydraulic system is operating at correct pressure, as low pressure can affect hydraulic PTO engagement.
  1. Inspect PTO Shaft:
  • Check the PTO shaft and implement drive shaft for wear. Replace if splines are rounded off.
  1. Professional Service:
  • Internal PTO clutch or brake issues often require professional service by a qualified Kubota technician.

3. Engine Starting & Running Issues

While Kubota engines are known for their reliability, problems can arise, especially in specific conditions.

Common Problems:

  • Hard Starting (especially in cold weather): Engine cranks but doesn’t fire up easily.
  • Engine Lacks Power: Tractor feels sluggish or struggles under load.
  • Excessive Smoke (Black, White, Blue): Different smoke colors indicate different underlying issues.

Root Causes:

  • Fuel System Issues: Clogged fuel filter, air in the fuel lines, poor fuel quality, or weak fuel pump.
  • Glow Plug Malfunction: Essential for cold starts in diesel engines.
  • Air Filter Clog: Restricts airflow, leading to reduced power and black smoke.
  • Injector Problems: Clogged or faulty fuel injectors.
  • Low Compression: Indicates internal engine wear.

Solutions:

  1. Fuel System Maintenance:
  • Always use clean, fresh diesel fuel. Change the fuel filter at recommended intervals.
  • If the tank has been run dry, bleed air from the fuel system. Use diesel anti-gel in cold weather.
  1. Check Glow Plugs:
  • Test glow plugs for continuity. Replace any that are faulty.
  1. Air Filter Replacement:
  • Inspect and clean/replace the air filter regularly, especially in dusty conditions.
  1. Injector Service:
  • If problems persist, have fuel injectors tested and serviced by a professional.
  1. Battery & Electrical:
  • Ensure the battery is fully charged and all electrical connections (especially to the starter and engine sensors) are clean and tight.

4. Transmission (HST) Issues

For MX5400 models with hydrostatic transmission, certain issues can affect smooth operation.

Common Problems:

  • Loss of Power/Speed: Tractor feels weaker or slower than usual.
  • Jerky or Erratic Movement: Uneven acceleration or deceleration.
  • Excessive Noise from Transmission: Whining or grinding.

Root Causes:

  • Low/Contaminated HST Fluid: Similar to hydraulics, proper fluid is critical.
  • Clogged HST Filter: Restricts fluid flow, affecting performance.
  • Air in HST System: Can cause spongy or erratic operation.
  • Worn Charge Pump: A common cause of power loss and noise.
  • Linkage/Pedal Issues: Worn or seized linkages can cause erratic control.

Solutions:

  1. HST Fluid and Filter Maintenance:
  • Ensure HST fluid is at the correct level and changed according to the manual. Use genuine Kubota HST fluid.
  • Replace the HST filter at recommended intervals.
  1. Bleed the System:
  • If work has been done on the HST system, follow the manual’s procedure to bleed any trapped air.
  1. Inspect Linkages:
  • Check control linkages from the pedals to the transmission for free movement and wear. Lubricate or replace as needed.
  1. Professional Diagnosis:
  • Internal HST issues, such as a worn charge pump or main pump, require specialized tools and expertise for diagnosis and repair.

5. Electrical System Malfunctions

Electrical issues can range from minor annoyances to complete operational shutdowns.

Common Problems:

  • Battery Not Charging: Alternator failure or wiring issues.
  • Lights Not Working: Blown fuses, faulty bulbs, or wiring.
  • Dashboard Warning Lights: Incorrectly illuminating or not working at all.
  • Intermittent Power Loss: Tractor shuts off randomly.

Root Causes:

  • Loose/Corroded Connections: Common cause of electrical gremlins.
  • Blown Fuses: Overloads or shorts.
  • Faulty Alternator/Regulator: Prevents battery charging.
  • Damaged Wiring Harness: Rodent damage, chafing, or corrosion.
  • Faulty Switches/Relays: Failure of key switch, PTO switch, etc.

Solutions:

  1. Inspect and Clean Connections:
  • Check all battery terminals, ground wires, and connector plugs for corrosion. Clean and tighten.
  1. Check Fuses:
  • Locate the fuse box (usually near the battery or under the dash) and check for blown fuses. Replace with the correct amperage.
  1. Test Alternator:
  • Use a multimeter to test the alternator’s output. Replace if it’s not charging the battery.
  1. Wire Inspection:
  • Visually inspect the wiring harness for signs of damage. Repair or replace damaged sections.
  1. Diagnostic Tool:
  • For complex issues, a wiring diagram and a multimeter are essential. Professional diagnostic tools can help identify sensor or ECU faults.

Preventive Maintenance is Key

Many of the common problems with the Kubota MX5400 can be prevented or mitigated through diligent preventive maintenance:

  • Follow Service Intervals: Adhere strictly to the maintenance schedule in your owner’s manual for fluid, filter, and lubrication changes.
  • Daily Checks: Before operation, check fluid levels (engine oil, hydraulic, coolant), tire pressure, and look for any visual leaks or damage.
  • Keep it Clean: Regularly clean the radiator, engine bay, and undercarriage to prevent debris buildup that can cause overheating or interfere with components.
  • Use Genuine Parts & Fluids: While aftermarket options exist, using genuine Kubota parts and fluids often ensures optimal performance and longevity.
