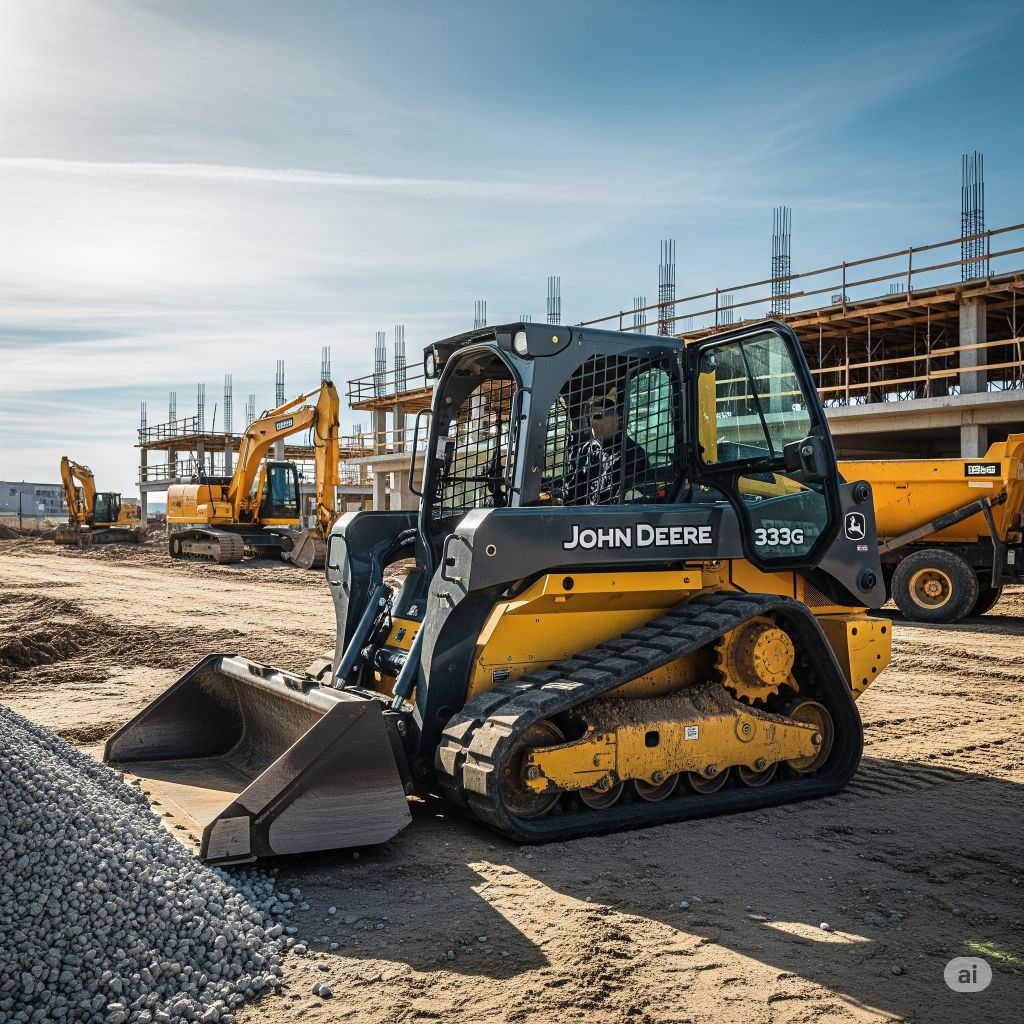

The John Deere 333G is one of the most powerful and versatile compact track loaders in the market. Designed for heavy-duty construction, land clearing, and large-scale landscaping, the 333G is known for its muscle and advanced technology, including a vertical-lift boom and compatibility with grade control systems. However, no machine is perfect. The 333G, like all heavy equipment, comes with its set of challenges, especially after extended use or in extreme work conditions. This article will dive into common John Deere 333 problems, how to fix them, and tips to ensure the machine stays in top shape.
Overview: John Deere 333G Specifications
| Feature | Value |
|---|---|
| Engine | Yanmar 4TNV94FHT, 3.3L Turbo Diesel |
| Horsepower | 100 hp |
| Operating Weight | 12,100 lbs |
| Rated Operating Capacity | 3,700 lbs |
| Tipping Load | 10,600 lbs |
| Hydraulic Flow (Standard/High) | 25 gpm / 41 gpm |
| Travel Speed | Up to 8.6 mph |
| Fuel Tank | 30.5 gal |
Common John Deere 333G Problems and Fixes
1. Hydraulic System Overheating
Problem:
Excessive heat in the hydraulic system is a recurring issue, especially during prolonged operation in hot climates or with attachments like mulchers.
Cause:
- Clogged coolers or dirty filters
- Low hydraulic fluid level
- High flow attachments drawing excessive pressure
Fix:
- Clean or blow out coolers and radiators regularly
- Replace hydraulic filters as per service schedule
- Switch to synthetic hydraulic oil if operating in extreme heat
- Use a hydraulic cooler kit if overheating is consistent
2. DEF System Errors and Regeneration Issues
Problem:
The 333G’s DEF (Diesel Exhaust Fluid) system can throw codes or force regen cycles frequently.
Cause:
- Poor DEF quality or contamination
- Sensor malfunction or failed NOx sensors
- DPF (Diesel Particulate Filter) clogging
Fix:
- Use only API-certified DEF and store it in clean, sealed containers
- Replace faulty sensors or wiring harnesses
- Allow the machine to complete passive or parked regen cycles
- If regen fails, perform a forced regen via JD Service Advisor
3. Track Tension and Idler Problems
Problem:
Tracks popping off or idlers seizing are fairly common with long-term use.
Cause:
- Improper tensioning
- Debris in undercarriage
- Worn-out or cracked idlers/rollers
Fix:
- Adjust track tension using the grease gun fitting behind the track frame
- Clean the undercarriage daily
- Replace worn rollers or idlers before they collapse
4. Starting Issues in Cold Weather
Problem:
Hard starts or failure to crank during cold mornings.
Cause:
- Weak battery
- Clogged fuel filters or thickened fuel
- Glow plug malfunction
Fix:
- Use winter-grade diesel fuel and additives
- Install a block heater or battery tender
- Replace old batteries with higher CCA-rated versions
- Inspect and replace glow plugs if needed
5. Joystick Calibration Errors
Problem:
Loss of precision control or drifting when using joysticks
Cause:
- Joystick calibration out of sync
- Faulty sensors
- Controller firmware bugs
Fix:
- Recalibrate joysticks using onboard diagnostics or a dealer tool
- Replace joystick control sensors if damaged
- Update firmware to the latest version
6. High Fuel Consumption
Problem:
Some owners notice higher-than-expected fuel usage under moderate load.
Cause:
- Running at high idle unnecessarily
- Overuse of high-flow hydraulics
- Clogged air or fuel filters
Fix:
- Adjust throttle to match task requirements
- Run attachments only as needed
- Clean or replace air filters and monitor turbocharger health
7. Cab HVAC and Electronics Glitches
Problem:
Intermittent blower failure, screen freezing, or false sensor alerts
Cause:
- Poor ground or connector corrosion
- Software issues
- Faulty blower resistor or wiring
Fix:
- Check electrical ground connections and clean corroded terminals
- Replace faulty HVAC components
- Reset CANBUS system using diagnostics tool
8. Bucket Leveling and Boom Float Mode Problems
Problem:
Boom not holding position or bucket auto-level not working correctly
Cause:
- Faulty position sensors
- Hydraulic control valve sticking
Fix:
- Inspect sensors at pivot points
- Flush control valve and check for internal leakage
- Reprogram auto-level features if malfunctioning
Proactive Maintenance Tips for John Deere 333G
- Daily:
- Clean debris from undercarriage and cooling system
- Check fluid levels and look for leaks
- Every 50 Hours:
- Grease all pivot points and boom joints
- Every 250 Hours:
- Change engine oil and filters
- Inspect air filters
- Every 500 Hours:
- Replace hydraulic oil filters
- Flush DEF tank
- Annually:
- Coolant system flush
- Full electrical diagnostic
John Deere 333G Reliability: The Big Picture
Despite its issues, the 333G remains a favorite in the industry. With high breakout force, industry-leading cab comfort, and compatibility with precision grade control systems, it delivers excellent value when properly maintained.
Strong Points:
- Excellent lifting and digging capacity
- Comfortable and quiet cab
- Solid fuel efficiency when optimized
- High attachment versatility
Known Weaknesses:
- Sensitive DEF and emissions system
- Hydraulic heat in mulching or forestry use
- Expensive parts if dealer-only repair is needed
FAQs: John Deere 333G
Q: How much can the JD 333G lift?
A: It has a rated operating capacity of 3,700 lbs and a tipping load of about 10,600 lbs.
Q: Is the 333G good for forestry mulching?
A: Yes, especially with the high-flow package, but overheating can be an issue without proper cooling upgrades.
Q: How do I reset the check engine light?
A: Use the on-board diagnostics or JD Service Advisor tool after fixing the underlying issue.
Q: Can I run a snow blower on the 333G?
A: Absolutely. With high-flow hydraulics and proper quick-attach compatibility, it handles snow blowers well.
Q: What’s the price of a used 333G in 2025?
A: Expect to pay between $60,000–$85,000 depending on hours, condition, and attachments.
Conclusion
The John Deere 333G is a powerhouse with great performance and flexibility across industries. However, it demands attentive maintenance and awareness of its common pain points. By understanding its common problems and applying the right fixes early, owners can extend the machine’s life and maximize uptime. Whether you’re mulching, trenching, grading, or lifting, the 333G—when properly maintained—is up for the task.
