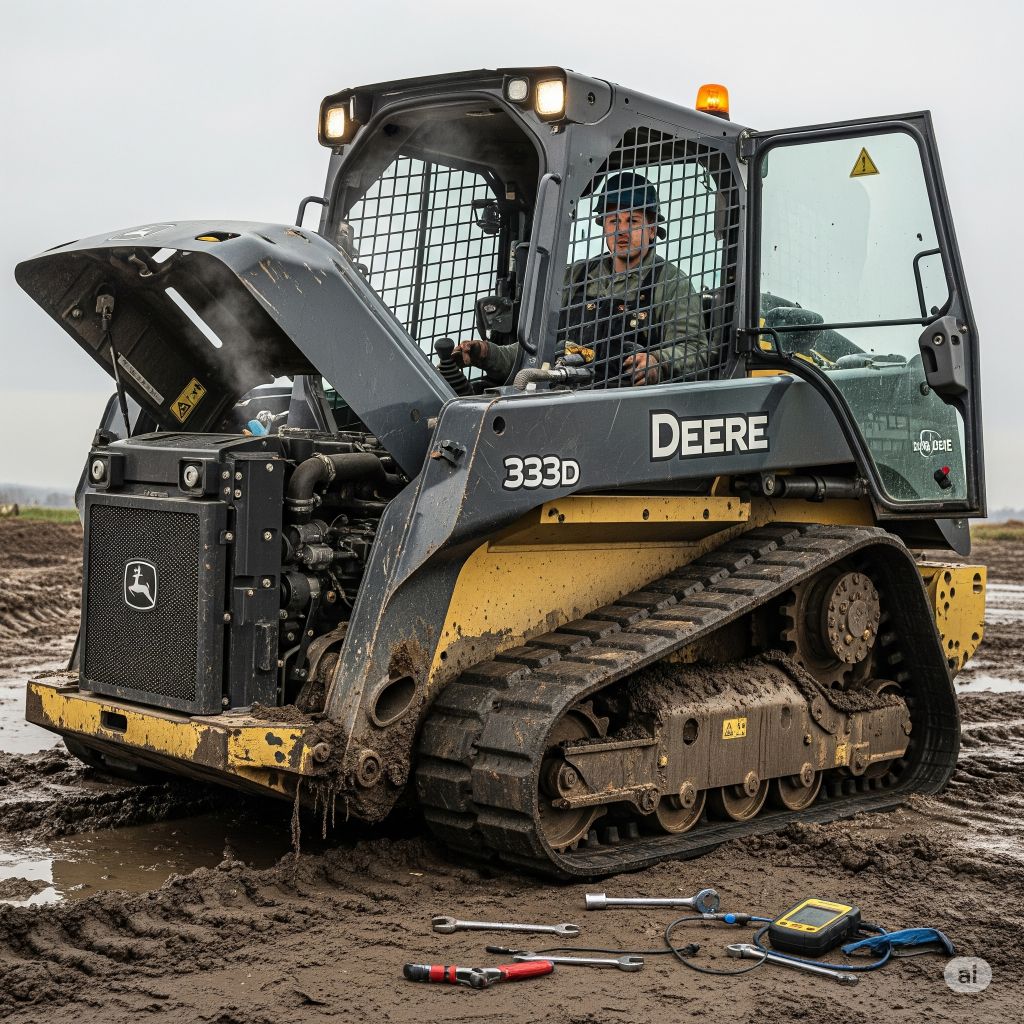

The John Deere 333D compact track loader (CTL) is known for its powerful performance and high lift capacity. With a 96-hp diesel engine and a vertical-lift boom, it’s a favorite on construction sites and farms alike. However, it’s not immune to mechanical issues. This guide explores common problems, fixes, specs, and answers to frequently asked questions to help you maintain your 333D and avoid costly downtime.
🔧 Common John Deere 333D Problems and Fixes
1. Hydraulic Overheating
Symptoms:
- Hydraulic warning light
- Sluggish loader or boom movement
- High-temp shutdowns
Causes:
- Clogged hydraulic cooler or radiator
- Dirty hydraulic fluid
- Bad fan motor or thermal switch
- Excessive idling under load
Fixes:
- Clean radiator and oil cooler fins regularly
- Replace hydraulic filter and fluid with John Deere-approved Hy-Gard
- Test cooling fan operation
- Avoid prolonged high-load cycles in extreme heat
2. DPF (Diesel Particulate Filter) and Regen Issues
Symptoms:
- Frequent regeneration
- Engine derating
- DPF warning light
Causes:
- Incomplete regen cycles
- Faulty temperature/pressure sensors
- DPF clogging due to poor fuel quality
Fixes:
- Allow full regen cycles; avoid shutting down mid-process
- Replace clogged DPF or clean with professional equipment
- Use ultra-low sulfur diesel and keep up with oil changes
3. Electrical System Faults
Symptoms:
- No start or random shutdowns
- Flickering or blank display screen
- Trouble codes (ECU, HCU)
Causes:
- Bad ground or battery connections
- Corroded wiring near fuse box or ECM
- Faulty key switch or control panel
Fixes:
- Clean and tighten battery terminals and ground straps
- Inspect wiring looms for rodent damage or wear
- Replace key switch or ignition module if faulty
4. Drive Motor or Track Problems
Symptoms:
- Tracks squealing, sticking, or failing to respond
- Uneven turning
- Excessive wear on undercarriage
Causes:
- Low hydraulic pressure
- Faulty drive motor
- Debris stuck in track rollers
Fixes:
- Check drive motor case drain flow
- Clean out track and check for bent rollers/sprockets
- Replace damaged idlers or adjust track tension
5. Joystick or Control Malfunctions
Symptoms:
- Loader arms or bucket not responding
- Controls lagging or “jumping”
- Inconsistent pilot pressure
Causes:
- Bad pilot control module
- Hydraulic valve or solenoid failure
- Faulty wiring to joystick sensors
Fixes:
- Test joysticks with diagnostic software
- Clean and reseat solenoids
- Replace joystick controller if needed
🧰 John Deere 333D Technical Specifications
| Category | Details |
|---|---|
| Engine Model | John Deere PowerTech E 5030HT |
| Horsepower | 96 hp (gross), 92 hp (net) |
| Torque | ~295 lb-ft |
| Displacement | 3.0 L (186.3 cu in) |
| Emissions | Interim Tier 4 / IT4 |
| Fuel Capacity | 25.5 gal (96.5 L) |
| Rated Operating Capacity | 3,300 lbs (1,497 kg) |
| Tipping Load | 9,425 lbs (4,276 kg) |
| Travel Speed | 5.5 mph (8.9 km/h) – 2-speed optional |
| Hydraulics – Standard Flow | 24 gpm @ 3,450 psi |
| Hydraulics – High Flow | 37 gpm @ 3,450 psi (optional) |
| Operating Weight | ~12,000 lbs (5,443 kg) |
| Boom Type | Vertical lift |
| Lift Height | 11 ft (3.35 m) |
🛠️ Maintenance Chart: Key Intervals
| Service Task | Interval |
|---|---|
| Engine Oil & Filter | Every 250 hours |
| Fuel Filter | Every 500 hours |
| Air Filter | Inspect every 10 hrs |
| Hydraulic Oil & Filter | 1,000 hours or annually |
| Final Drive Oil | 500 hours |
| Coolant Change | Every 2 years |
Tips:
- Use John Deere Plus-50 II oil
- Always clean coolers and filters before working in hot or dusty environments
- Keep track tension within spec to avoid wear
📋 Known Error Codes on the John Deere 333D
| Error Code | Meaning | Fix |
|---|---|---|
| F9C-523636.05 | Hydraulic temp sensor fault | Replace sensor or check wiring |
| ECU 1180.7 | DPF temperature sensor high | Clean sensor or replace if damaged |
| HCU 523471.04 | Joystick communication error | Recalibrate joystick or replace module |
| ECU 157.16 | Fuel pressure too low | Replace fuel pump or clogged filter |
❓ John Deere 333D FAQs
❓ Is the 333D a good CTL for heavy-duty work?
Yes. With a 3,300-lb rated capacity, vertical lift, and high flow hydraulics, it’s ideal for heavy lifting, mulching, and grading.
❓ Does the 333D have DEF?
No. The 333D uses an Interim Tier 4 engine with EGR and DPF but no DEF. Later models like the 333G include DEF.
❓ What’s the lifespan of a John Deere 333D?
With proper care and regular maintenance, these loaders can last 5,000+ hours. Some owners report reaching 7,000+ hours with engine rebuilds.
❓ Why does my 333D lose power under load?
Likely causes include:
- Clogged DPF or air filter
- Low fuel pressure
- Restricted hydraulic return lines
❓ What’s the best bucket or attachment for general use?
A 78” or 84” low-profile bucket is common. For forestry or snow, consider a high-capacity or grapple bucket. Make sure it’s rated for 3,300 lbs.
⚠️ Quick Troubleshooting Chart
| Issue | Probable Cause | Solution |
|---|---|---|
| Overheating | Dirty radiator, faulty fan | Clean radiator, check fan relay |
| No start | Bad battery or starter solenoid | Charge battery, replace solenoid |
| No hydraulics | Low fluid, failed pump | Top off fluid, test hydraulic pressure |
| Won’t regen | Incomplete regen cycle | Force regen using diagnostic software |
| Slow drive speed | Limp mode or 1st gear lock | Check ECU codes, reset via display |
✅ Final Thoughts: Should You Buy or Keep a 333D?
The John Deere 333D remains a powerful, well-balanced CTL with wide support and excellent lifting performance. However, its DPF system and sensitive electronics are known pain points. If you’re willing to stay on top of maintenance, it’s a reliable workhorse.
Still, for users who want fewer emissions-related issues, consider upgrading to the 333G with DEF, or even older Tier 3 models like the 332D.
🛒 Pro Tips for Owners
- Invest in a hydraulic quick coupler if frequently switching tools
- Install a backup camera and protective guarding for forestry jobs
- Keep a diagnostic scanner or John Deere Service Advisor access handy
