Cat 299D Problems Specs Fixes and more

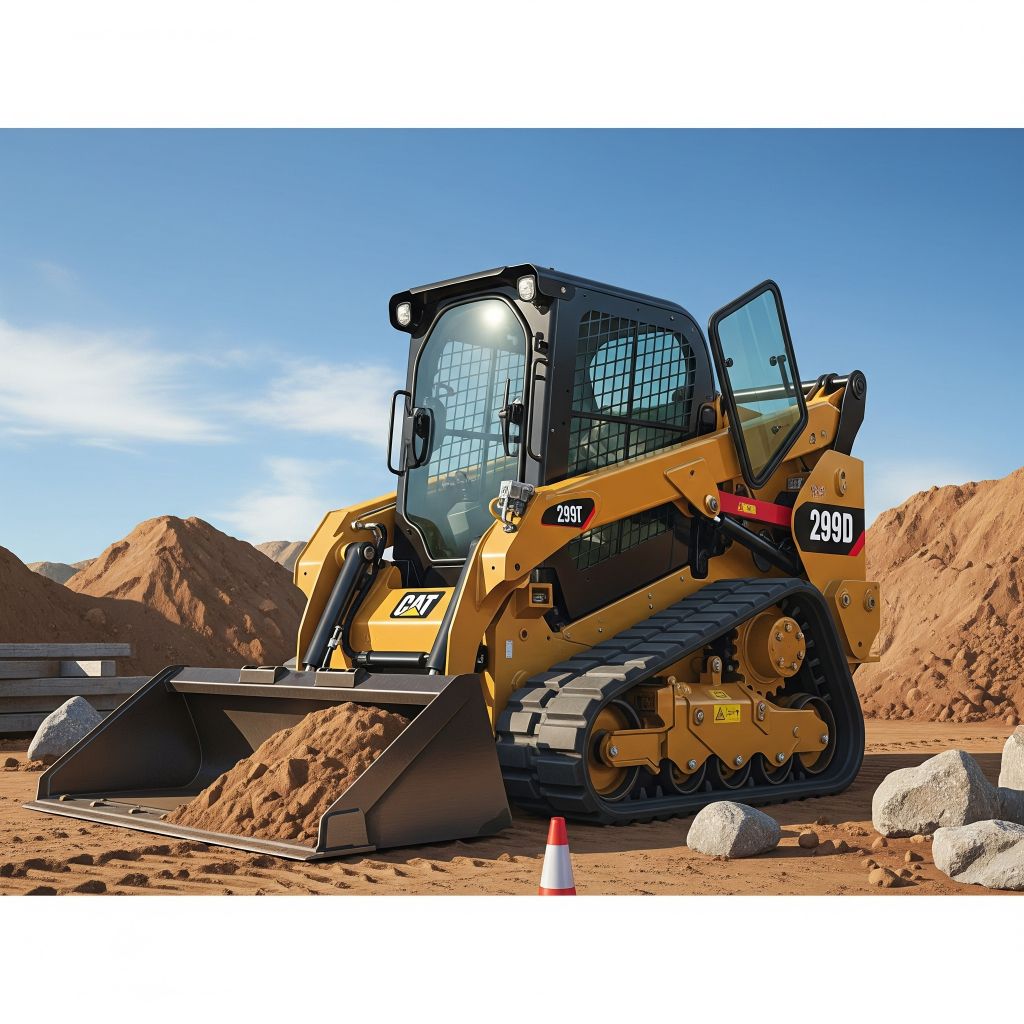

The Caterpillar 299D (and upgraded XHP and D2 versions) is a high-performance compact track loader used extensively in construction, forestry, farming, and landscaping. With excellent traction, horsepower, and hydraulic power, it’s a capable machine—but not immune to issues.

From hydraulic quirks and overheating to fuel system and electrical gremlins, owners report a range of recurring challenges. This guide digs into those issues, shares practical maintenance tips, and offers troubleshooting advice backed by documented sources and user experiences.

1. Specifications & Model Variants

2. Common Issues, Diagnoses & Fixes

A. Overheating & Cooling Problems

• Symptoms: Rising coolant temps, engine derate, clean-out required.
• Causes: Dirty radiator/fine mesh cooler fins, low coolant, restricted airflow.
• Fixes: Regularly clean all cooling surfaces, ensure proper coolant and check for leaks.

B. Hydraulic Fluid Leaks & Pump Cavitation

• Symptoms: Loss of hydraulic pressure, sluggish skirt hinge movements, overheating drive system.
• Causes: Worn seals, leaky couplers, trapped air in system, faulty relief valves.
• Fixes: Inspect and replace lines/seals, bleed the system, adjust relief valves, monitor charge pressure.

C. Engine Power Loss, Stalling & Fuel System Failures

• Symptoms: Engine dies after start, runs rough, loses power under load.
• Causes: Air in fuel tank lines, clogged lift or return filters, failing lift pumps, worn injector nozzles, incorrect injection timing.
• Fixes: Replace lift pump or pick-up tube, clean/replace filters, verify fuel timing, clean or replace injector nozzles.

D. Electrical & Sensor Issues

• Symptoms: Machine won’t leave park, unexpected shutdown, jerky control response.
• Causes: Faulty throttle or speed sensor wiring, harness damage, poor connectors, ECM misbehavior.
• Fixes: Test throttle sensor codes (e.g. MID 039 CID 0091 FMI 03), inspect and replace wiring harness or sensor, clean connectors. (Reddit, AVS Manual)

E. Final Drive & Undercarriage Problems

• Symptoms: Track comes off, final drive failure, vibration, drive-binding.
• Causes: Loose tension, wrong track size, debris buildup, worn bearings.
• Fixes: De-tension before reinstalling tracks; maintain 20–30 mm sag; clean undercarriage daily; replace worn final drives.

F. Cab Comfort Issues (AC / Noise)

• Symptoms: Weak or no AC airflow, high cabin noise, ventilation problems.
• Causes: Clogged condenser, torn air filters, blower motor issues.
• Fixes: Clean condenser fins, replace cabin filter, verify blower fuse and motor operation.

🔧 Common CAT 299D / 299D2 Problems & Fixes

While the CAT 299D and 299D2 series are known for their power and efficiency in compact track loaders, several recurring issues can affect their performance over time. Below are the most frequently reported problems, their causes, and practical fixes to keep your machine running reliably.

Shifting Out of Low Range (Crankshaft Sensor Resistor Fault)

Issue:
Operators report that the CAT 299D may become stuck in low range or refuse to shift properly, often accompanied by fault codes. This can affect work efficiency on job sites requiring frequent speed transitions.

Cause:
A common root cause is a faulty 1150-ohm resistor linked to the crankshaft speed sensor. When the resistor is malfunctioning or degraded, it may feed incorrect voltage signals to the ECU, prompting false diagnostics or disabling shifting.

Fix:

• Inspect the 1150-ohm resistor with a multimeter.
• Replace with a manufacturer-specified resistor if out of range.
• Also, inspect the shift solenoid to ensure it’s engaging/disengaging correctly.
• A firmware update to the ECU may resolve compatibility bugs in some models.

🔧 Tip: Always disconnect battery power before testing electrical components.

⚖️ Weight and Sinking in Soft Ground

Issue:
The CAT 299D2 XHP models, with high-flow hydraulics and added features, are significantly heavier than base 299D models. Users working on soft or wet terrain often complain about the machine sinking, causing traction loss and reduced maneuverability.

Cause:

• Increased weight from larger frame and optional attachments.
• Inadequate track width or ground contact area.

Fix:

• Install wider or low-ground-pressure tracks to distribute weight more evenly.
• Consider using optional counterweights to balance front-to-rear load ratios during heavy lifting.
• Evaluate terrain conditions and avoid prolonged idle parking on soft soil.

⚠️ Avoid narrow aftermarket tracks on XHP units.

🧽 Cleaning and Drainage Difficulties

Issue:
Thoroughly cleaning the 299D undercarriage and engine bay can be a hassle due to drain hole placement and poor water flow when the machine is parked on level ground.

Cause:
The flat chassis design and few low-clearance drain ports can cause water pooling and mud buildup, especially under the hydraulic bay or engine platform.

Fixes:

• Park the machine on a slight incline when cleaning to promote water flow.
• Use angled nozzles or pressure washer wands to reach recessed areas.
• Modify or widen drain holes (if under warranty constraints allow).
• Incorporate biodegradable degreasers to break down grime in difficult-to-reach areas.

3. Owner-Reported Insights & Real-World Feedback

From Reddit (regarding new 299D3‑XE units):
“Every one of them has had problems… DEF line unconnected so it shut down… loose hydraulic lines… mower disc out of square… lug nuts coming off.”

On final drive reliability:
“Final drive on the 299D XHP failed… 2nd final drive failure in 1900 hrs”

Fuel starve diagnostic advice:
“First check fuel level… then lift pump… filters… Already had two of these fail in my fleet.”

ECU control issues:
“The skid steer will just turn left by itself… sensor malfunctions I’m guessing”

These reports underscore systemic concerns: final drive wear, poor pre-delivery quality control by dealers, electrical wiring and sensor faults.

4. Maintenance Best Practices

1. Cooling system: Clean radiator and hydraulic oil cooler fins every 100 hours.
2. Hydraulic fluid: Replace filters on schedule; bleed system after any service.
3. Fuel system: Check lift pump wiring; replace filters every 250h; monitor for air ingress.
4. Electrical circuits: Inspect critical harness connectors—especially throttle, speed, and sensor wiring.
5. Track tension & undercarriage: Adjust weekly; clean daily; check for debris.
6. Cab maintenance: Replace cabin filter annually; ensure blower/AC condenser clean.
7. Diagnostic firmware: Keep ECM/steering/drive software updated via authorized service.

5. Quick FAQs

Q1: Can the 299D lift more than 3,480 lb?
A: No—the rated operating capacity is ~3,480 lb, tipping load ≈ 6,950 lb with proper ballast.

Q2: What causes jerky low-speed hydraulic response?
A: May be due to response delays from sensor wiring issues or 2-speed shift logic faults. Tighten harness connections; update firmware.(truck-expert)

Q3: Why does the machine stall after 10 minutes?
A: Likely fuel starvation—check lift pump, vent, filters. Many owners keep a spare pump in-cab.

Q4: What to do if track comes off in field?
A: Fully release tension, use pry bar to reseat track, then retension to 20–30 mm sag per spec.

Q5: Is AC replacement part of normal service?
A: Clean condenser and blower filter regularly; replace burned fuses or motors as needed for airflow restoration.

Q6: How common are hydraulic coupler failures?
A: Sticking or failing high-flow couplers cause noise, power loss; replacing couplers resolves symptoms.

6. Summary Table: Problems and Fix Steps

✅ Final Thoughts

The Caterpillar 299D series offers strong capacity, traction, and hydraulic performance—but many owners report consistent fuel pump, final drive, and electrical/ECM sensor failures, especially in wooded or dusty environments.

Proactive maintenance—particularly on cooling systems, track tension, and wiring harness diagnostics—is essential. Watch for recurring stall or overheating issues, invest in servicing program with adept technicians, and keep a consistent maintenance log to avoid expenisive downtime.
