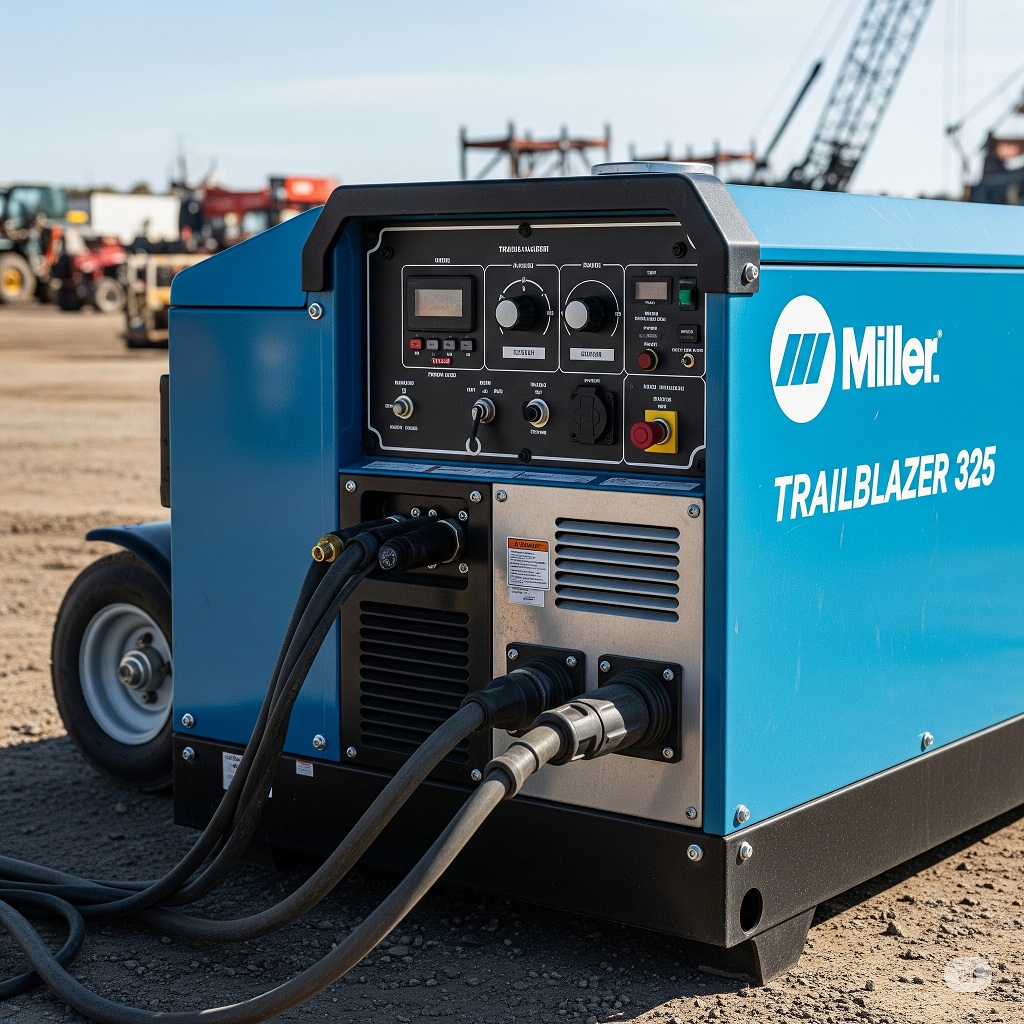

The Miller Trailblazer 325 is a professional-grade engine-driven welder and power generator, favored for its consistent arc, fuel efficiency, and performance across welding modes (stick, MIG, TIG, etc.). However, even this robust machine is known to exhibit certain recurring issues. Below, we cover those known failure modes, practical troubleshooting steps, and preventive maintenance to keep your machine running reliably.
📋 Summary Table: Common Issues & Solutions
| Problem | Symptoms | Likely Cause | Suggested Fix |
|---|---|---|---|
| Engine won’t start | No crank or ignition | Battery dead, fuse F6 blown, fuel issue | Check/replace battery; inspect F6 fuse and fuel valves; clean carburetor |
| Engine cranks but won’t run | Cranks then dies | Fuel filter/clogged line | Replace fuel filter; check fuel pump and lines |
| High idle / “runaway” engine | RPM climbs uncontrollably | Governor or air/gas system fault | Factory service agent to inspect governor; airflow issue Manual Machine) |
| Engine fails to return to idle | Won’t idle after welding load | Settings wrong, loads active | Set switch to “Auto Speed”; disconnect loads or remotes |
| Battery drains between uses | Battery dead after sitting | Engine switch in wrong position | Use “Off” when not in use; charge every 3 months |
| Welding output drops / erratic | Puddle loss, spikes, output fluctuation | Control board, sensor issue, firmware | Update firmware via USB; inspect PC boards PC1/PC2 |
| Overheating / TMP1 errors | Thermal protect trips, reduced outputs | Poor airflow, location hot ambient | Add supplemental fan or relocate unit |
| Cracked housing or panels | Vibration-induced cracks or deformation | Structural stress, high vibration levels | Inspect chassis regularly; repair before cracks expand |
🔍 Common Issues & Deep Dive Solutions
1. Engine won’t start or crank
Symptoms of a dead engine or starter failure are often traced to:
- Blown fuse F6
- Weak or faulty battery
- Dirty or clogged fuel lines or carburetor
Fix: Replace fuse, verify and charge/replace battery, open fuel valves, inspect and clean carburetor.
2. High idle or runaway RPM
Several users have reported the machine occasionally running away in “Auto” mode with rising engine speed beyond normal:
“When it’s put in run it will maintain an idle and in auto it will run away from being over-fueled”.
Causes include faulty governor control, airflow problems, or possibly defective voltage regulators.
Fix: Have a factory-authorized service agent inspect or re-calibrate the engine governor; ensure exhaust and air intakes are clear; and check voltage regulation .
3. Engine won’t return to idle after welding
If the machine stays revved and doesn’t settle post-weld:
- Ensure the engine control switch is in Auto Speed
- Disconnect welding loads and remote devices before cool-down
- Reset circuit breakers if needed
If the issue persists, a service agent may need to test control boards or components.
4. Battery discharges between uses
Often caused by:
- Engine control left in “Run” rather than “Off”
- Parasitic drain on control board or remote receptacle
Fix: Switch to Off when idle, recharge battery every three months, and check voltage regulator circuitry.
5. Erratic arc output or voltage fluctuations
Multiple users have observed poor weld consistency or arc instability—especially with 7018 electrodes:
“I lose the puddle… amps seemed to fluctuate by themselves… I love the engine drive Millers, but my last boss’s new Trailblazer did not throw as fine a bead…” .
Potential causes include firmware bugs, control board failure, or sensor inaccuracies.
Fix: Update the unit via USB to the latest Trailblazer 325 software (Update 2G, Oct 2024) , check and clean electrical connections, and consider board replacement if problems persist.
6. Overheating and TMP1 thermal trips
Reported cases of repeated thermal shutdown:
“TMP1 errors… inefficient airflow… thermal overload switch has opened”.
This is often due to heatbuild-up in high ambient temperatures, especially in hot-weather regions.
Fix: Add an external fan onto the air intake, ensure louvers aren’t blocked, and relocate unit to cooler shade if possible.
7. Structural cracks and deformation
Repeated vibration and heat cycles can cause chassis or panel cracks.
Fix: Inspect the machine regularly, tighten bolts, and repair or replace cracked sections early. Preventative maintenance helps avoid larger failures.
8. Oil and maintenance prevention tips
Routine service keeps the Trailblazer 325 healthy:
- Change engine oil and filter every ~200 hours, using genuine Miller/Kohler parts
- Inspect fuel lines, filters, and air intake periodically
- Replace spark arrester regularly if installed
- Keep interior clean of dust and carbon buildup
🧠 Expert Tips & Prevention Strategies
- Download firmware updates as soon as they’re released. Latest Update 2G corrected feed binding and voltage errors.
- Avoid working in extreme heat without supplemental airflow—especially in the Texas sun, where TMP1 errors are common.
- Use proper Kohler-rated fuel; stabilize fuel if machine is stored more than 90 days .
- Use correct electrodes and settings, especially when welding with 7018 in steep travel positions. If welds collapse at half-height, try adjusting ground connection or updating firmware.
❓FAQs: Trailblazer 325 Troubleshooting
Q1: Why won’t my engine crank?
A: Check fuse F6, battery health and connections, fuel valve, and solenoid. Replace or repair as needed.
Q2: My unit goes to full RPM and won’t stop—help?
A: Likely a governor or airflow issue. Contact Miller-authorized service and clear obstructions around cooling zones.
Q3: Welding puddle disappears mid-weld with 7018 rod—why?
A: Possible voltage fluctuations or arc instability. Ensure firmware is up to date and check control board connections.
Q4: It overheats and trips thermal alarm on weld or gen mode?
A: Add extra ventilation or use a fan; operate in shaded area on hot days.
Q5: When should I replace oil filter or fuel filter?
A: Follow Kohler/Miller guidelines: oil filter every 200 hours, change fuel filter during regular service, especially in dusty or humid environments.
Q6: Why am I losing weld output even though engine runs fine?
A: Check fuse F5, PCB PC1/PC2, brushes, slip rings, and connections. Factory service may be required.
Q7: Is the Trailblazer 325 suitable for carbon gouging or high-amperage?
A: No. Users recommend inverters like the Vantage 400 over this style of engine drive unit due to generator load spikes.
🔚 Final Thoughts
While the Miller Trailblazer 325 is a powerful, quiet, fuel-efficient machine ideal for field or industrial welding—even supporting auxiliary output—the unit can exhibit electrical quirks, overheating, and control issues if not maintained or updated regularly. Many of the problems are addressable with firmware updates, improved airflow, and preventive maintenance such as regular filter changes and fuel treatment.
If you own or are considering a Trailblazer 325, be proactive with:
- Firmware updates
- Preventive maintenance routines
- Environmental awareness (heat, dust, storage)
- Prompt troubleshooting of error codes or output inconsistencies
