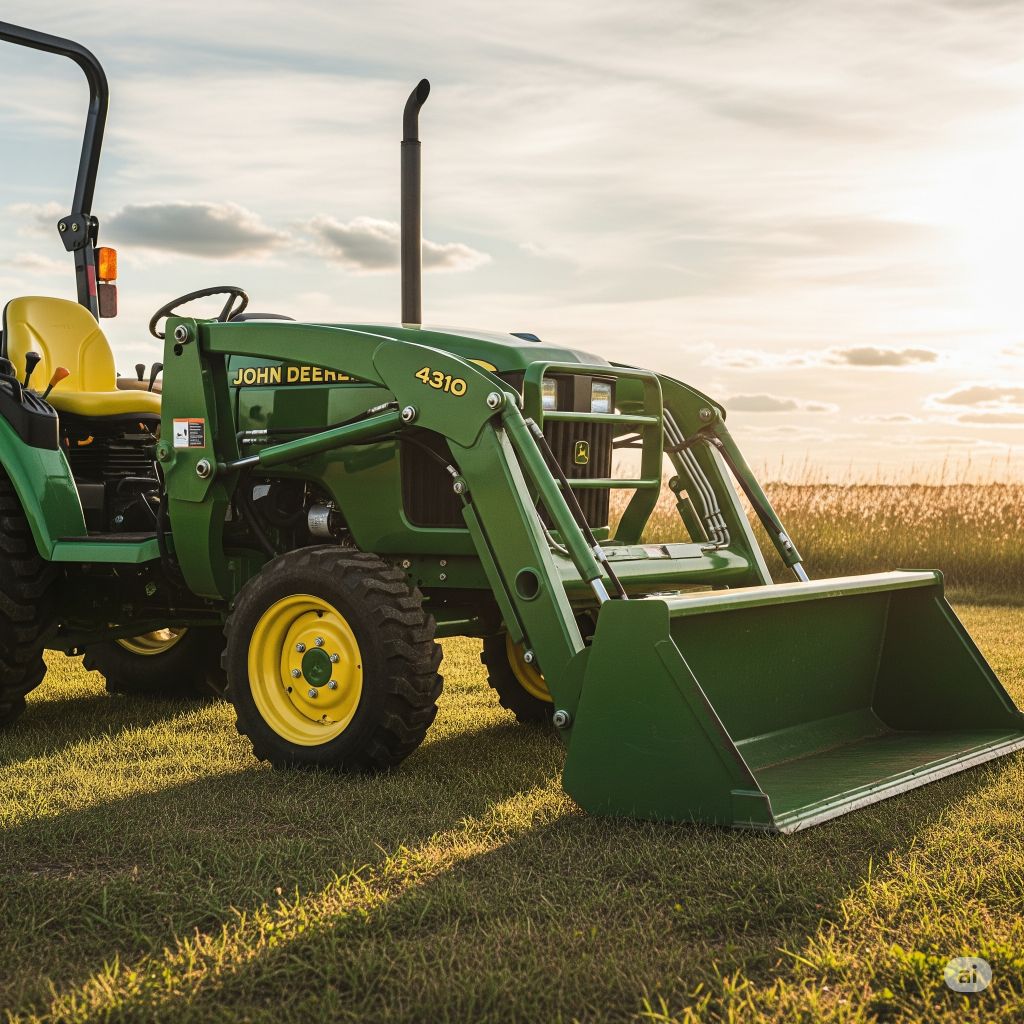

John Deere 4310 Problems, Fixes, Specs, and More

The John Deere 4310 compact utility tractor is a staple among acreage owners, landscapers, and small farmers. Produced from 2002 to 2004, it offers a desirable blend of power, maneuverability, and versatility. However, like any well-used machine, the 4310 has its unique quirks and known issues. This guide covers the 4310 in detail—major specifications, common problems, fixes, maintenance tips, and an owner’s perspective—with an emphasis on practical advice and technical depth.

Overview & Core Features

The John Deere 4310 belongs to Deere’s 4000 Ten (4000 TEN) series of compact utility tractors. With a modest weight, physical dimensions suitable for tight spaces, and broad implement compatibility, the 4310 is prized for its reliable Yanmar diesel engine, hydrostatic or power shuttle transmission, and a host of modern amenities for its vintage.

Key highlights include:

Yanmar 3-cylinder, 1.5L diesel engine
Up to 32 gross horsepower
Choice of hydrostatic, power shuttle, or partially synchronized gear transmission
2WD or 4WD drivetrain
Category 1 three-point hitch
Compatibility with a large range of Deere and aftermarket attachments

Comprehensive Specifications

Feature	Specification
Production Years	2002–2004
Manufacturer	John Deere (Augusta, Georgia, USA)
Engine	Yanmar 3TNE84, 3-cylinder diesel, 1.5L
Horsepower (engine)	31.2hp (23.3kW) gross, 27hp (20.1kW) PTO
Transmission	9F/3R gear, 12F/12R power shuttle, eHydro (HST)
Drivetrain	2WD or 4WD
Fuel capacity	10gal (37.9L)
Hydraulic system	Open center, 6.3gal (gear)/6.8gal (hydro), 2,500psi
Hydraulic pump	Total flow: 13.9gpm (52.6lpm); steering: 5.3gpm (20.1lpm)
Rear lift capacity	2,200lbs (997kg) at 24 in
PTO	Independent, rear (540rpm@2,600rpm engine)
Dimensions	Wheelbase: 68in (172cm); Length: 117in (3m)
Weight	2,600–2,900lbs (1,180–1,315kg) depending on config
Tires (front/rear)	5.00-15 (F)/11.2-24 (R)
Battery	12V, 500CCA, negative ground
Charging	Alternator, 40A standard, 55A optional
Attachments	Mid-mount mower (60/72in), blade, loader, backhoe, etc.

Common Problems and Known Issues

Despite its overall reliability, the 4310 exhibits several age- and design-related issues that owners should be aware of. Many of these are shared among the 4000 Ten series:

1. Plastic Hood and Panels

Issue: Panels and hood are vulnerable to cracking, breaking, and fading over time—especially with UV exposure or incidental impacts.
Symptom: Cosmetic damage; can escalate to panels falling off or exposing wiring and mechanicals.
Why: Early use of engineered plastics; aging and thermal cycling.

2. Steering Wheel/Tilt Mechanism

Issue: The adjustable steering column mechanism is prone to strip, loosen, or break.
Symptom: Steering wheel wobbles, tilt won’t lock in place, adjuster becomes non-functional.
Why: Plastic/aluminum internals and repeated leverage when mounting/dismounting.

3. Sticking Brakes

Issue: Brakes stick on application, especially if tractor sat with parking brake engaged.
Symptom: Brake does not disengage; must be manually reset under tractor.
Why: Corrosion, infrequent lubrication, neglected maintenance.

4. Front Axle/Knuckle Seal Leaks

Issue: Axle seals at the front wheel knuckles develop leaks.
Symptom: Oil on inner front wheels; low axle oil8.
Why: Seal wear/age, exposure to debris, lack of regular inspection.

5. Hydraulic Leaks and Frozen Valves

Issue: Hydraulic leaks common in older models; rate-of-drop valve for three-point hitch often freezes.
Symptom: Hydraulic fluid drips, 3-point drop speed adjuster handle seized or broken913.
Why: O-ring shrinkage, lack of use, exposure to grit/moisture.

6. Electrical Issues

Issue: Starter and battery circuitry can be prone to faults—especially with aging harnesses.
Symptom: Intermittent starting, charging problems, blown fuses.
Why: Corrosive environment, rodent damage, relay age.

7. PTO/4WD Solenoid and Valve Failure

Issue: PTO and four-wheel drive operation controlled by solenoids and diverter valves, which can fail or stick.
Symptom: PTO won’t engage/disengage; loss of mechanical 4WD operation12.
Why: Electrical or mechanical solenoid wear, plugged diverter valves.

8. Seat Deterioration

Issue: Original seats often crack, absorb water, and rust out.
Symptom: Torn seat cover, water intrusion, discomfort8.
Why: Sun exposure, general wear.

9. Miscellaneous Annoyances

Backhoe stabilizer leak: O-ring leaks develop, causing hydraulic oil drips.
Flasher switch, lighting issues: Minor, age-related electrical gremlins.
Hand throttle friction loss: Throttle won’t hold position due to wear.

Fixes & Preventive Maintenance

Addressing these issues is usually within reach for mechanically minded owners, though some items are best left to qualified service personnel.

1. Hood and Panel Protection

Prevent: Store under cover; treat panels with UV protect-ant.
Fix: Reinforce cracks with fiberglass or epoxy from behind. Replacement panels available, but can be costly.

2. Steering Tilt Repair

Fix: Disassemble and replace stripped plastic/aluminum gear mechanism. Aftermarket parts or permanent weld solutions exist. Avoid using steering wheel for leverage entering/exiting cab.

3. Brake Service

Lubricate: Linkages and return springs with appropriate grease/oil.
Rebuild: If persistent, clean/inspect brake assembly; replace worn or corroded parts.

4. Front Knuckle Seals

Replace: Kits available; procedure straightforward for competent home mechanic. Refill/bleed front axle oil. Inspect regularly8.

5. Hydraulic System

Inspect: Watch for leaks at valve bodies, hoses, and O-rings.
Fix: Replace leaky O-rings, snap rings, and seals. For frozen rate-of-drop valve, lubricate with penetrant and work gently until freed; replace plastic handle as needed13.

6. Electrical System

Clean: Battery terminals; inspect wiring for rodent/UV damage.
Test: Fuses, relays, and connections. Replace battery if showing signs of capacity decline9.

7. PTO/4WD Faults

Test: Use a multimeter to check solenoids (resistance should match spec).
Replace: Solenoids as necessary; clean diverter valves. If not resolved, check hydraulic diverter body for blockages or internal wear12.

8. Seat Upgrades

Replace: Aftermarket and OEM seat kits available.
Prevent: Use covers to protect from weather, especially if stored outdoors.

9. Operator’s Station/Controls

Service: Tighten/re-grease friction locks.
Replace: Broken levers/switches as needed.

Operator Comfort & Attachments

John Deere designed the 4310 for operator safety and comfort. Features include a flat platform, uncluttered controls, high-backed seat, and folding ROPS. The tractor is compatible with a broad array of implements:

Loaders: 430 loader is a perfect matched front-end loader.
Mowers: 60” and 72” mid-mount mower decks.
Backhoe: 47 and 48 Deere backhoe units.
Three-Point Implements: Category 1—blades, tillers, box scrapers.
Snowblowers and Blades: Popular for estate maintenance.

Quick Hitch and iMatch: The rear compatible with iMatch Quick Hitch for rapid implement changes.

Ownership Experience: Strengths & Weaknesses

Strengths

Engine Reliability: The Yanmar diesel is renowned for durability with proper maintenance.
Ease of Operation: Hydro or shuttle options, excellent visibility, logical controls.
Excellent Parts/Support: Still well-supported; new and aftermarket/yards carry thousands of parts.
Hydraulic Power: Generous capacity for size class; suitable for many loader and implement operations.
Maneuverability: Compact size, multiple steering configurations.

Weaknesses

Aging Plastics: Cosmetic but often frustrating; can be costly if replacements are needed8.
Steering Tilt: A design weak point for all 4310s; frequent failure from leverage wear810.
Brake/Linkage Rust: Likely with stored outdoor units; regular use/lubrication staves off issues.
Electrical Quirks: Most are minor, but age accelerates occurrence.
Hydraulic O-Rings/Leaking Valves: Repeated issue; not a major cost but time-consuming

Frequently Asked Questions

How much power does the 4310 produce?
31.2 gross hp engine; 27 PTO hp for implements.

What attachments fit the 4310?
Loaders, mid-mowers, backhoes, Category 1 3-point implements, plus JD iMatch and aftermarket equipment.

How fast does the John Deere 4310 go?
15–17mph maximum transport speed, depending on transmission and tires9.

Is the 4310 suitable for tough loader/bucket work?
Yes. The front-end loader is well-matched to the frame and hydraulics, but weight ballast and sensible working loads are crucial.

Are parts hard to find?
No. Deere, aftermarket, and used supply substantial inventories for most wear parts—even cosmetic panels.

What oil/filter spec should be used?
Refer to the operator’s manual, but generally 15W-40 diesel engine oil, John Deere hydraulic/transmission fluid, and JD or compatible filter brands.

What are common high-hour maintenance pitfalls?
Front axle seals, hydraulic leaks, seat and steering column wear, and cosmetic panel failure. Core engine and drivetrain are robust with consistent service.

How do you check for brake/final drive wear in a used 4310?
Test brake engagement/disengagement; look for wheel oil leaks; test for slack in pedals, adjust return springs, and pull panels to visually inspect linkage.

Final Thoughts

The John Deere 4310 represents a high water mark in compact utility tractor design—robust, simple, yet advanced for its era. While not immune to the ravages of time (particularly in exposed plastics, tilt steering, and certain hydraulic and electrical elements), its Yanmar diesel, plentiful parts availability, and broadly compatible attachments make it a strong candidate on the used market for small farms, residential acreages, and maintenance professionals. Regular preventive maintenance—especially for brakes, steering, electrics, and hydraulics—maximizes uptime and value.
